As an architect, I have been familiar with Industrialized Building systems since 1985. The promoters of the many systems all claim their particular method of construction to be superior in terms of cost, speed and quality. And I have learned to be sceptical.
But the system that most impressed me is based on a very simple concept and it was invented by a fellow Malaysian. I first used Chou Kan Yin’s system of tongue and groove blocks for Staff Housing in Universiti Industri Selangor, and the project was completed in 2003. The results were impressive!
Chou’s concrete blocks slide neatly into each other to form straight walls – something that our workers cannot do with bricks and mortar.
Steel bars for beams, stiffeners and lintels run through the hollows found in the block. Similarly, the wiring and pipes can be put in place without hacking, plus power point casings and water pipe outlets are pre-installed into special blocks at the factory.
With drawings that describe the location of every block, complete with the running of steel bars, wiring and concealed plumbing, building a house is like playing with Lego!

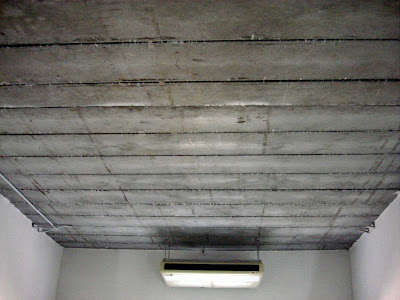

Chou has improved on wall system by adding a simple method for constructing upper floors without formwork. He is now manufacturing 2 inch thick planks that use pre-stressed concrete. These planks are craned into position before being topped up with another layer of reinforced concrete that is poured on site.
No formwork is required, and the floors become waterproof as the wet concrete seals the gaps between the planks.
Together, the wall and floor system produces an accurate building structure without mess. The walls and ceilings only need a thin layer of skim-coating to give a smooth finish. Tiles can also be easily laid on the floors or walls without having to repair the underlying surfaces.
Mostly, Industrialized Building Systems are used in big projects to take advantage of economies of scale. But the special thing about Chou’s system is that it can be used for even a small bungalow!
